The air-atomizing micro spray nozzles are precision machined using custom micro turning machines to obtain tight tolerances and improved concentricity of liquid and gas orifice. There are no moving parts or valves that can compromise the effectiveness of the spray. The micro nozzles are used in high demanding applications, such as stent coating, by multinational companies. More .. |

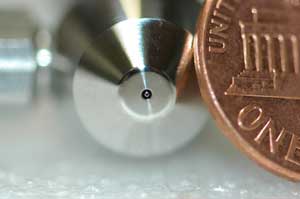

 Enlarged view of micro nozzle tip section |
|
“A small nozzle orifice size results in small droplet sizes.” |
 SEM image of liquid and air orifice of micro nozzle |
With nano-micro nozzles or micro- atomizers small liquid amounts (smaller 500 ml/h) are disintegrated at low atomizing pressures (smaller 1.2 bar) to produce small droplets in the nano-micro range. A common problem is the reproducible production of these nozzles as described under "Design and Manufacturing of nano-micro nozzles".
The liquid to be sprayed is disintegrated into fine droplets by the atomizing gas that emerges from the nozzle at the annular gap. Depending on the nozzle design, the atomizing fluid is mixed outside (outer mixing) or inside (inner mixing) of the nozzle. Air-atomizing spray nozzles are also referred to as twin-fluid, two-fluid, multiple fluid, pneumatic, and air-assisted spray nozzles or atomizers.
